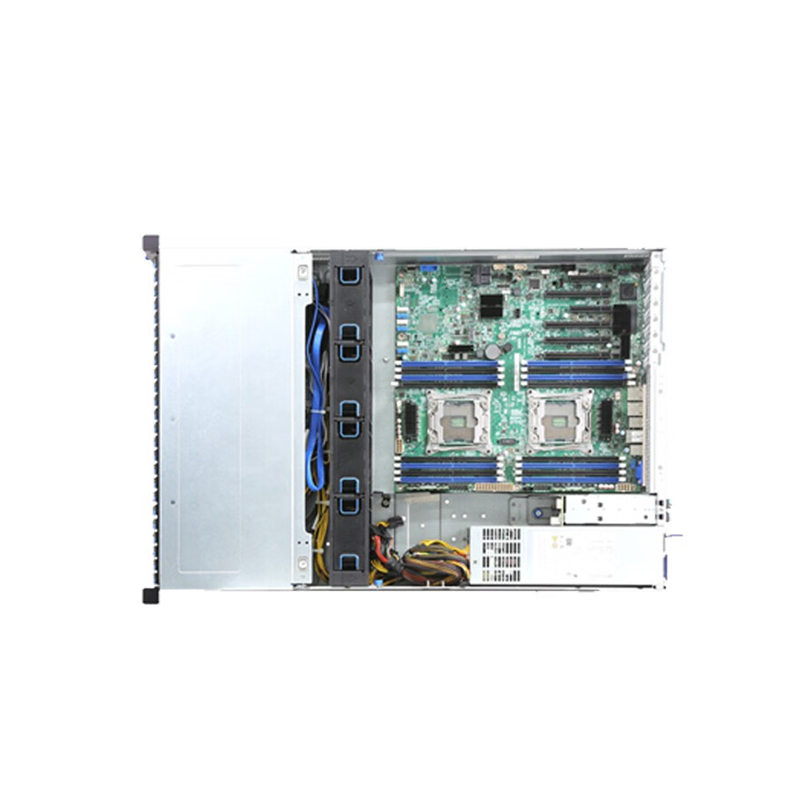

CC26Z12 storage server

Rich extensions

lcan support 8 front 3.5-inch hot swappable hard drives

l16 PCIe expansion bits, supporting OCP3.0 network cards.

Easy management

lIPMI remote management allows for real-time monitoring of the system and real-time operations including power on and off;

lModular design of components such as hard disk module, PCIE expansion module, power supply, fan, etc., tool free maintenance.

Application scenarios

lSuitable for high-density deployment of loads such as cloud computing, virtualization, high-performance computing (HPC), and big data processing.

Central Processing Unit

3rd Gen Intel® Xeon® Scalable processors
Dual Socket LGA-4189 (Socket P+) supported,
CPU TDP supports Up to 270W TDP,
3 UPI up to 11.2 GT/s
Up to 40 cores

Memory capacity

18 DIMM slots
Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz
Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz
P1-DIMMB2 and P2-DIMMB2 are reserved for Intel OptanePersistent Memory 200 Series only.

Chipset

Intel® C621A

storage

M.2 Interface: 1 PCIe 4.0 x4
M.2 Form Factor: 2280/22110
M.2 Key: M-Key
Intel® C621A controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10

LAN

IPMI
ASPEED AST2600 BMC
Network Controllers
Dual LAN with Intel® i350 Gigabit Ethernet Controller

Input/Output

2 USB 2.0 port(s) (2 via header)
7 USB 3.2 Gen1 port(s) (2 via header; 4 rear; 1 type A)
2 VGA (1 rear bezel, 1 front panel) port(s)
2 COM Port(s) (1 header; 1 rear)
1 TPM Header

Appearance and morphology

2U Rackmountable with Rail kit

height

82mm

width

432mm

depth

660mm

Disk slot

3.5" Hot-swap：12
1 PCIe 4.0 x4

PCI-Express

2 PCIe 4.0 x8,
4 PCIe 4.0 x16,
2 PCIe 4.0 NVMe x8 Internal Port(s)

source

1200W Redundant power supplies

Environmental specifications

Operating Temperature Range
10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range
-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non Operating Relative Humidity Range
5% - 95% (non-condensing)

OS

Windows Server 2019 64bit
Fedora 32 64bit
SLES 15 SP3 64bit
Ubuntu 20.04.1 LTS 64bit DT
Oracle Linux 8.2
CentOS 8.2 64bit
