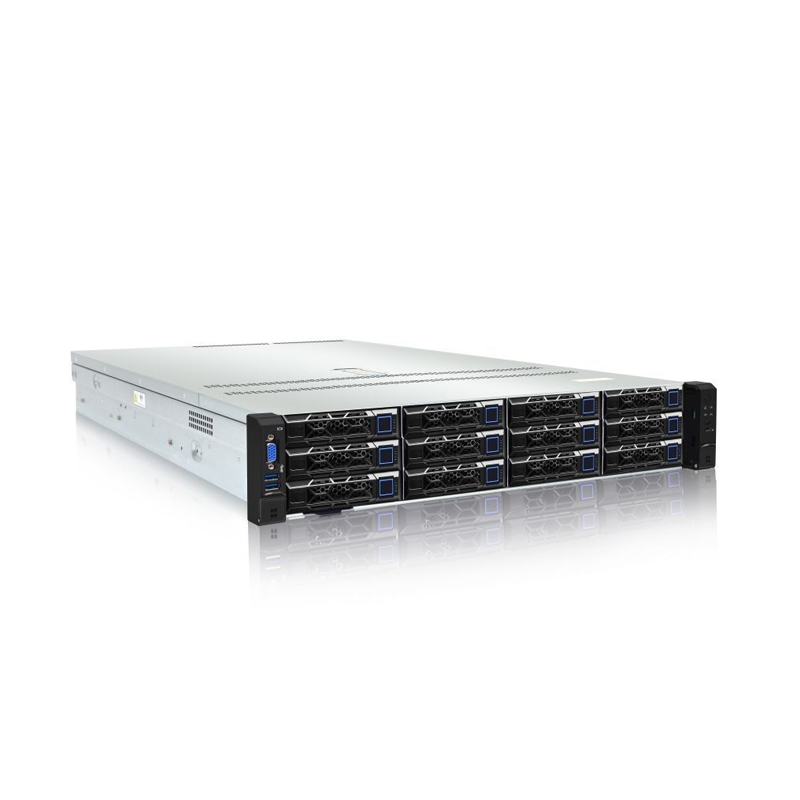

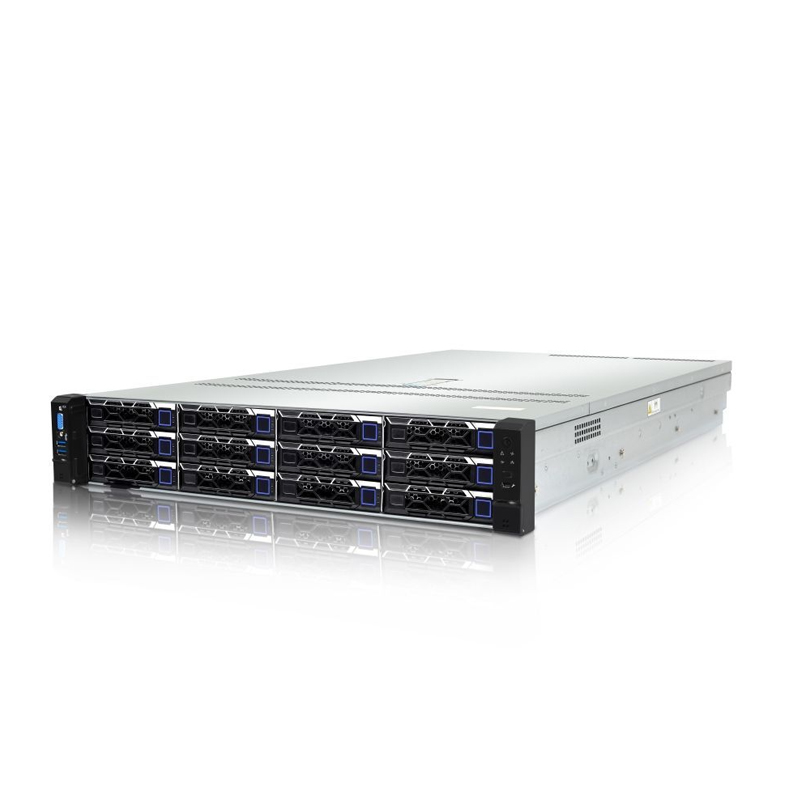

GXN26I02 GPU server

Leading Architecture

lWithin a 12U space, it can support 2 PCIe external cards and NVIDIA A100 professional cards;

lSupport new 100Gb network cards to improve data transmission efficiency.

Excellent performance

lTwo Intel chips ® Third generation Zhiqiang ® Scalable processor, TDP 270W;

l32 DDR4 ECC RDIMM/LRDIMM memory slots, capable of supporting 8TB of memory;

Flexible configuration

lSupports 12 3.5-SATA hot swappable hard drives and supports RAID data protection;

l1+1 2000W redundant power supply to prevent data loss caused by power outage;

lFlexibly adapt to various brands of smart network cards.

Ready to use out of the box

lL Optional pre installed multiple operating systems

lAnd deliver in the form of containers, reducing the deployment cycle that takes several days, making it practical to use out of the box, and improving work efficiency.

中央处理器

3rd Gen Intel® Xeon® Scalable processors
Dual Socket LGA-4189 (Socket P+) supported,
CPU TDP supports Up to 270W TDP,
3 UPI up to 11.2 GT/s
Up to 40 cores

内存容量

32 DIMM slots
Up to 8TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz
Up to 8TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 8TB 3DS ECC RDIMM, DDR4-3200MHz
P1-DIMMB2 and P2-DIMMB2 are reserved for Intel OptanePersistent Memory 200 Series only.

芯片组

Intel® C621A

存储

M.2 Interface: 2 PCIe 4.0 x4
M.2 Form Factor: 2280/22110
M.2 Key: M-Key
Intel® C621A controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10

LAN

1 1GbE RJ45 for IPMI and 1 1GbRI45 dedicated management network port
1 0CP NIC3.0 standard slot, optional 4x1GbE/2x10GbSFP+/4x10GbSFP+/2x25Gb SFP28 0CP network card

Input / Output

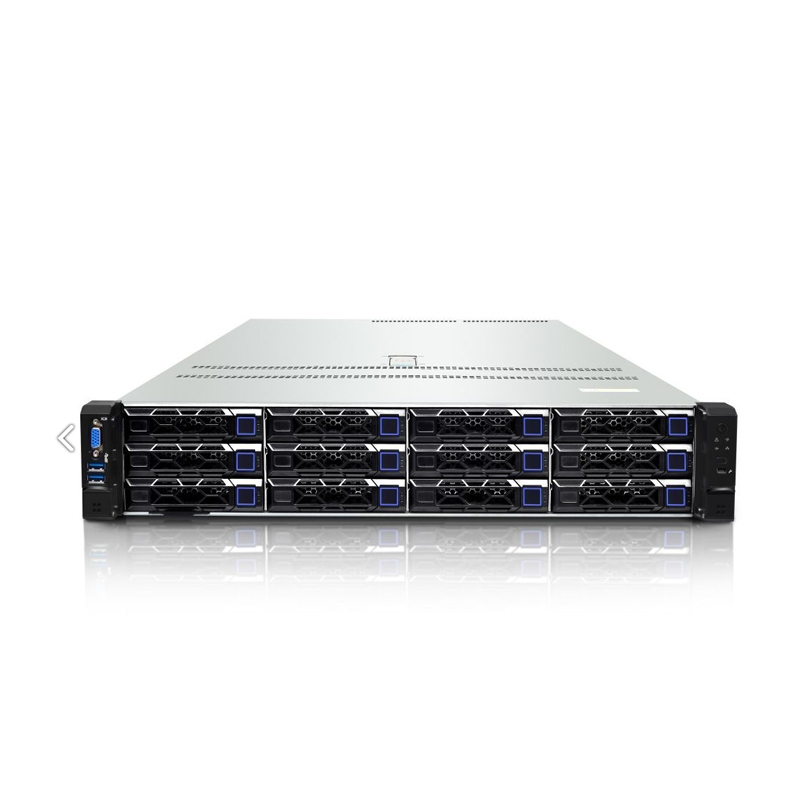

Front end: 1 VGA, 2 USB 3.0, 1 LcD Mini USB

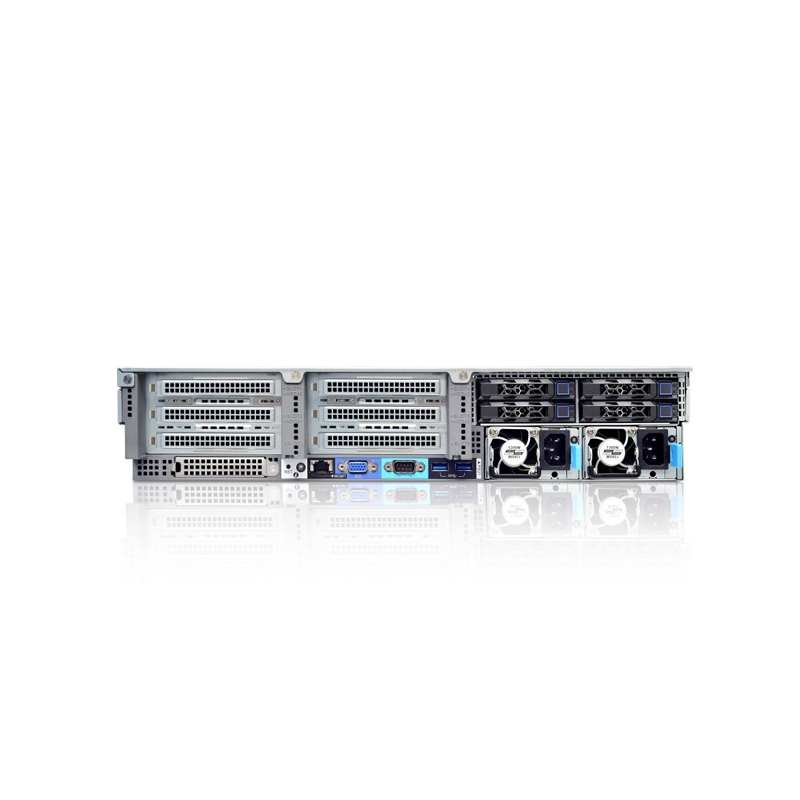

Rear: 1 VGA, 2 USB 3.0, 1 RJ45 management network port, 1 COM

外观形态

2U Rackmountable with Rail kit

高度

87mm

宽度

448mm

深度

763mm

磁盘槽

Front end: Supports up to 12 3.5-inch (optional support for 8 NVMe) or 25 2.5-inch hard drives
Rear: Supports up to 4 3.5-inch+4 2.5-inch hard drives or 10 2.5-inch hard drives
Built in: Supports 4 3.5-inch hard drives (compatible with 2.5-inch)
Supports 2 M.2 (2280, PCle3.0x2),
optional support for 1 SD module (supports RAID1 dual Micro SD),
up to 24 U.2 NVMe SSDs

PCI-Express

Large volume supports 10 PCle4.0 expansion slots
Supports up to 3 dual width GPUs or 8 single width GPUs

电源

2000W Redundant power supplies

环境规格

Operating Temperature Range
10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range
-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non Operating Relative Humidity Range
5% - 95% (non-condensing)

OS

Windows Server 2019 64bit
Fedora 32 64bit
SLES 15 SP3 64bit
Ubuntu 20.04.1 LTS 64bit DT
Oracle Linux 8.2
CentOS 8.2 64bit
