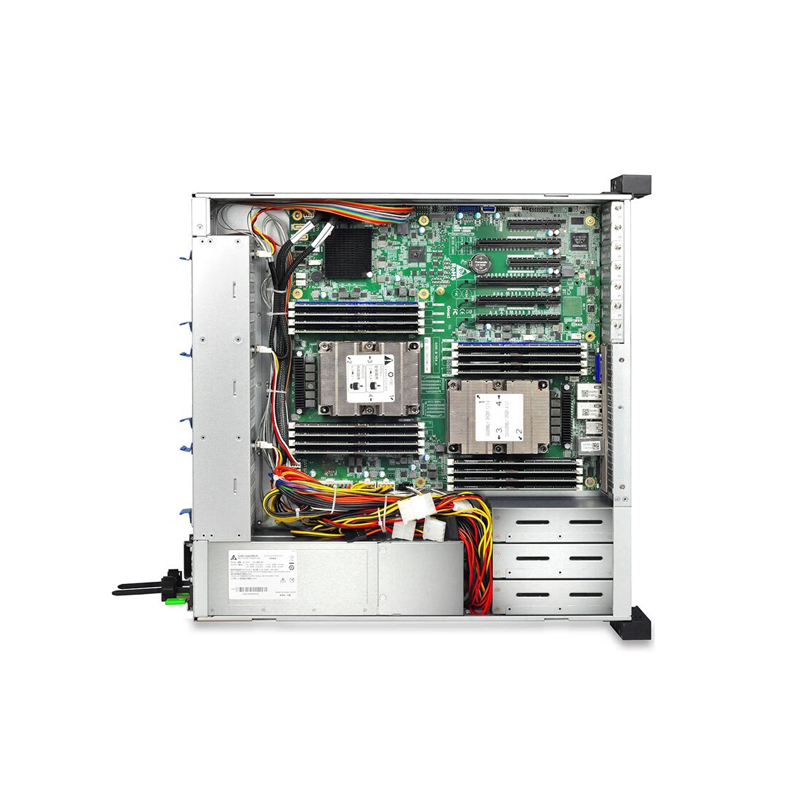

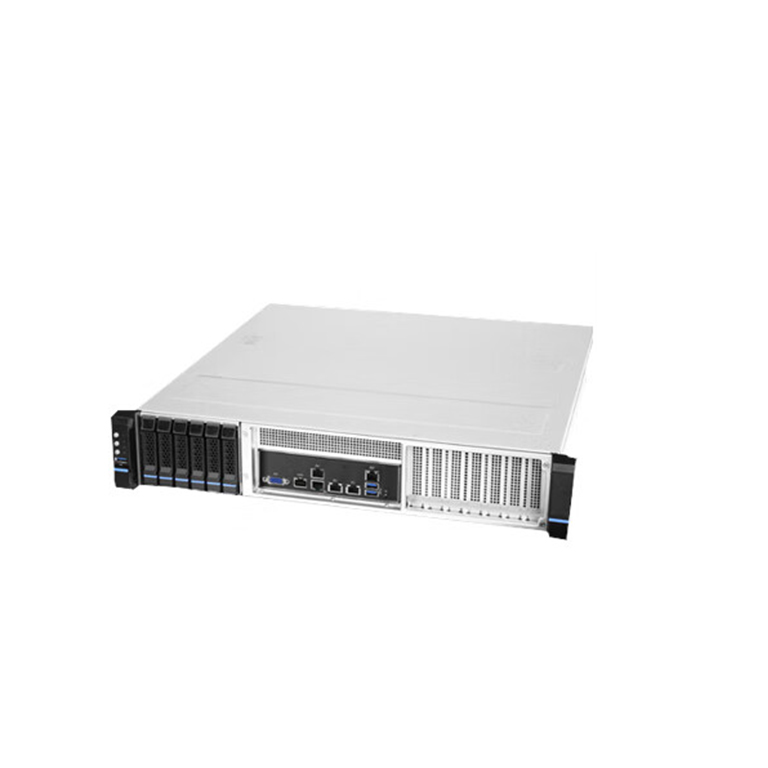

BY266I Patrol security server

Excellent performance

lSupport for third-generation Intel ®   xeon   ®   Scalable processor;

l18 memory slots, supporting up to 4TB DDR4-3200 memory;

Rich extensions

lSupports 6 2.5-inch SATA/SSD 6Gb hot swappable disks; Built in 2 2.5-inch hard drives;

lIntegrated with Intel ®   I350 network card;

lSupports 2 PCIe 4.0 x16 and 2 PCIe 3.0 x8.

Easy management

lThe BMC management module provides management functions such as SOL, remote KVM, remote on/off, system monitoring, virtual media mapping, and deploying operating systems;

lThe web interface simplifies maintenance work, speeds up problem-solving, and improves system availability.

Application scenarios

lCloud computing virtualization, databases, high-performance computing (HPC);

lBig data processing is beneficial for balancing high load, storage, and computing.

Central Processing Unit

3rd Gen Intel® Xeon® Scalable processors
Dual Socket LGA-4189 (Socket P+) supported,
CPU TDP supports Up to 270W TDP,
3 UPI up to 11.2 GT/s
Up to 40 cores

Memory capacity

18 DIMM slots
Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz
Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz
P1-DIMMB2 and P2-DIMMB2 are reserved for Intel OptanePersistent Memory 200 Series only.

Chipset

Intel® C621A

storage

M.2 Interface: 1 PCIe 4.0 x4
M.2 Form Factor: 2280/22110
M.2 Key: M-Key
Intel® C621A controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10

LAN

IPMI
ASPEED AST2600 BMC
Network Controllers
Dual LAN with Intel® i350 Gigabit Ethernet Controller

Input/Output

2 USB 2.0 port(s) (2 via header)
7 USB 3.2 Gen1 port(s) (2 via header; 4 rear; 1 type A)
2 VGA (1 rear bezel, 1 front panel) port(s)
2 COM Port(s) (1 header; 1 rear)
1 TPM Header

Appearance and morphology

2U Rackmountable with Rail kit

height

88mm

width

438mm

depth

450mm

Disk slot

(2.5" Hot-swap)：6
M.2 Interface: 2 PCIe 4.0 x4, RAID 0 & 1

PCI-Express

2 PCIe 4.0 x8,
4 PCIe 4.0 x16,
2 PCIe 4.0 NVMe x8 Internal Port(s)

source

1200W Redundant power supplies

Environmental specifications

Operating Temperature Range
10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range
-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non Operating Relative Humidity Range
5% - 95% (non-condensing)

OS

Windows Server 2019 64bit
Fedora 32 64bit
SLES 15 SP3 64bit
Ubuntu 20.04.1 LTS 64bit DT
Oracle Linux 8.2
CentOS 8.2 64bit
