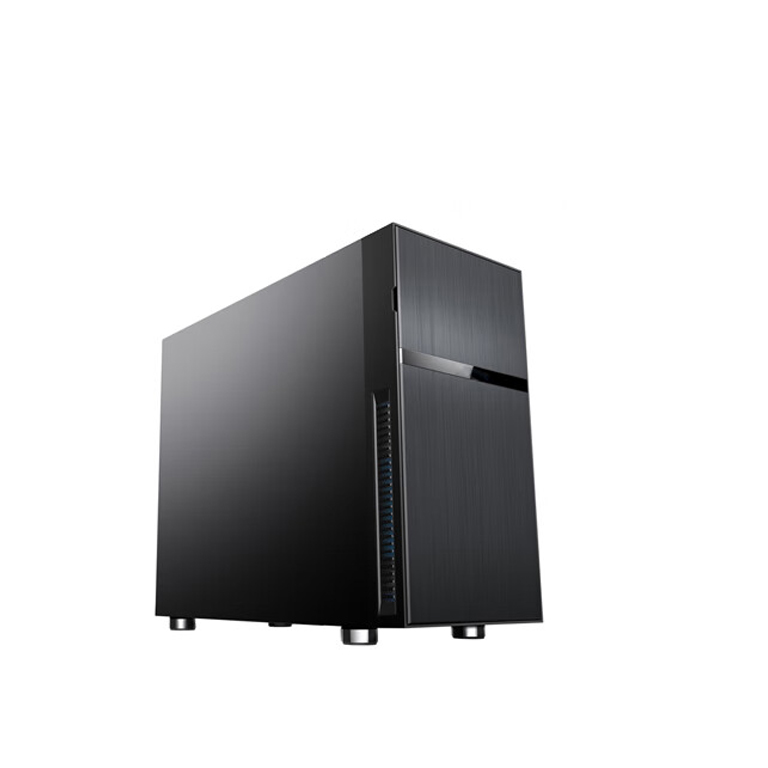

TS34E Entry Workstation

WeChat

Sina Weibo

QQ space

Douban

Baidu Post Bar

type Entry level tower workstation, suitable for enterprise office, EPR applications, WEB collaboration and other scenarios, with strong scalability, affordability, easy management, strict testing

Warranty period Three years

model TS34E

021-61275806

product details

Product features

Ultra high computing power

lSupports 12th/13th/14th generation Intel ® CoRE ® Series processors;

lSupports 2 high-power GPUs; The motherboard has two native M.2 interfaces, which can achieve ultra-high computing power

lUsing DDR5 memory technology, it supports up to 192 memory expansion capabilities; Compared to the previous generation platform, there have been comprehensive improvements in kernel, frequency, cache, and interconnection channels.

Scalability

lSupports 4 7200 MT/s DDR5 DIMM memory types, providing excellent speed, high availability, and 192GB of memory capacity

lL storage elastic expansion, in addition to 8 built-in 3.5 inch hard drive slots, 2 optional 2.5 inch hard drive slots can also be equipped;

lCPU, memory, storage, PCIe, and other components can be expanded on demand to meet the demands of ultra-high computing power applications such as digital currency, cloud computing, big data, and virtual computing.

Modular design

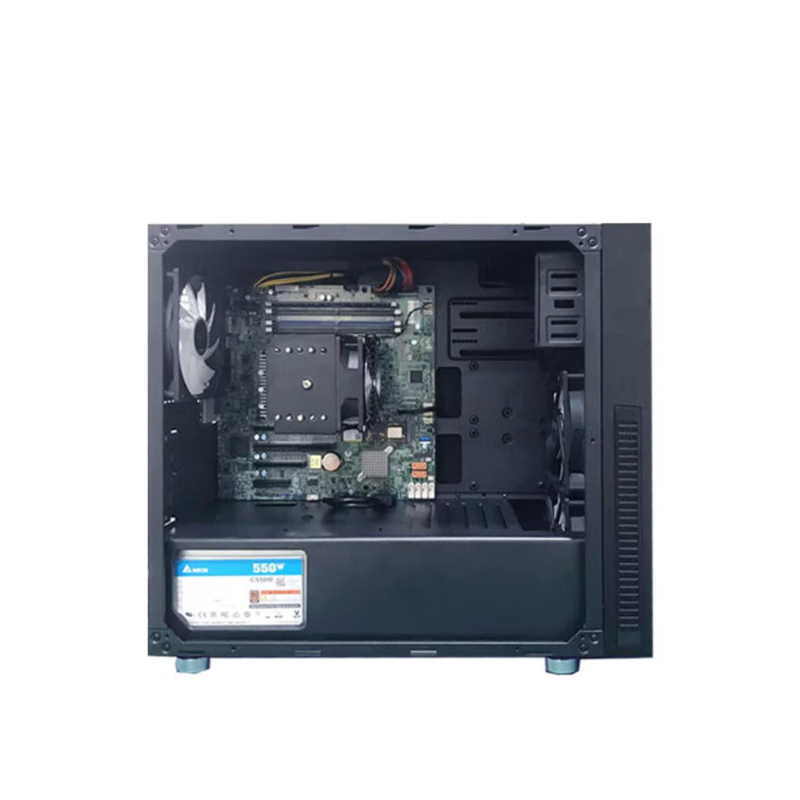

lBased on the concept of humanized design, by enhancing and optimizing some structural components, rapid disassembly and assembly can be achieved, greatly reducing operation and maintenance time. By combining advanced intelligent temperature control technology with advanced air cooling systems, the entire machine can work in a better environment;

Remote management

lRemote management, where real-time monitoring of the system and real-time operations including power on and off can be carried out remotely;

Specification parameters

processor
Central Processing Unit	10th Generation Intel® Pentium® Processor, Intel® Xeon® E-2300 Processor Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 95W TDP Up to 8 cores
system memory
Memory capacity	Memory Capacity 4 DIMM slots Up to 128GB Unbuffered ECC UDIMM, DDR4-3200MHz Memory Type 3200/2933/2666 MT/s SDRAM DIMM Sizes 4GB, 8GB, 16GB, 32GB
Built in devices
Chipset	Intel® C252
Input / Output
storage	M.2 Interface: 1 PCIe 3.0 x4 M.2 Form Factor: 2280/22110 M.2 Key: M-Key Intel® C252 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
LAN	IPMI ASPEED AST2600 BMC Network Controllers Dual LAN with 1GbE with Intel® I210

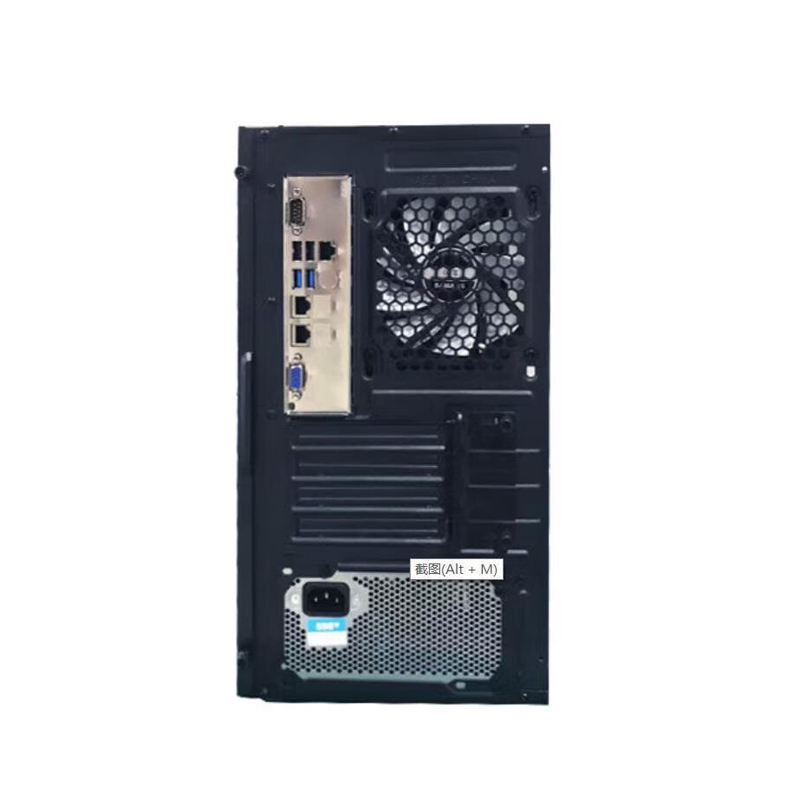

Input / Output	LAN 2 1GbE LAN ports USB 4 USB 2.0 port(s) (2 via header; 2 rear) 5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A) Video Output 1 VGA D-Sub Connector port(s) Serial Port 2 COM Port(s) (1 header; 1 rear) DOM 2 SuperDOM (Disk on Module) power connector TPM 1 TPM Header
Appearance and morphology	Mid-Tower
Size and weight
height	396mm
width	205mm
depth	456mm
Disk slot	2HDD 2SSD M.2 Interface: 1 PCIe 3.0 x4
Expansion slot
PCI-Express	1 PCIe 4.0 x8, 1 PCIe 4.0 x8 (in x16 slot), 1 PCIe 4.0 x4 (in x8 slot)1 PCIe 3.0 x2 (in x4 slot)
power supply unit
source	850W Gold Medal Power Tower Full Module
Working environment
Environmental specifications	Operating Temperature Range 0°C - 50°C (32°F - 122°F) Non-Operating Temperature Range -20°C - 60°C (-4°F - 140°F) Operating Relative Humidity Range 10% - 85% (non-condensing) Non Operating Relative Humidity Range 10% - 95% (non-condensing)
Supporting operating systems
OS	Windows Server 2019 64bit Windows Server 2022 64bit RHEL 8.3 64bit CentOS 8.3 64bit Ubuntu 18.04.6 64bit Server Ubuntu 20.10 64bit Server VMWare ESXi 7.0u3 x64
